Description

Lapis-ex is an electronic device whose principle of operation is based on the use of changeable electromagnetic field, powered by permanent current supply. It is intended to prevent problems of calcium carbonate (boiler scale) forming on the inside of water pipes. Lapis-ex prevents boiler scale sediment from forming through the process of changing its crystal structure.

Boiler scale affecting water supply systems causes loss of energy and pressure drop. Lapis- ex successfully eliminates this problem and saves considerable amounts of heat as well as energy.

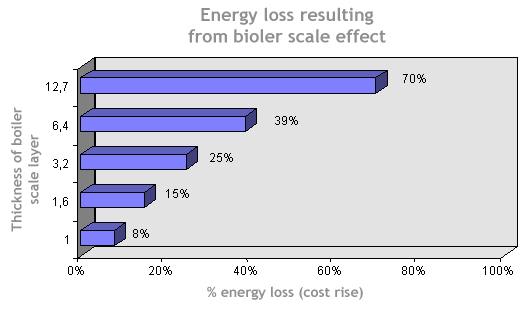

graph

Lapis-ex has the following functions:

  • cleaning function:causes washing out of boiler scale after by softening and

    dissolving of the sediment

  • protective function:prevents forming of sediment and its settling on the inside

    of water pipes

Komponent parts

Lapis- ex consists of three main parts:

  • mains power unit

  • generator

  • work control system

flowchart

All component parts are placed in a casing made of the ABS material of 120 mm x 65 mm x 40 mm with a metal part for fixing the whole unit in position.

1.5m length of double insulation power lead with a plug, go out of the left side of the casing. On the right side, there are two banana plug sockets for connecting the output leads.

All component parts are placed in a casing made of the ABS material of 120 mm x 65 mm x 40 mm with a metal part for fixing the whole unit in position. 1.5m length of double insulation power lead with a plug, go out of the left side of the casing. On the right side, there are two banana plug sockets for connecting the output leads. On the front cover there are two photodiodes: yellow and red.

The yellow one indicates correct functioning of the unit, the red one indicates current supply. Lapis- ex is filled with encapsulating compound which gives it protection against harmful weather conditions.On the front cover there are two photodiodes: yellow and red.

The yellow one indicates correct functioning of the unit, the red one indicates current supply. Lapis- ex is filled with encapsulating compound which gives it protection against harmful weather conditions.
